Flex Locators

​

Quick and Accurate Fixture Change

Flex Locators

One Touch Flex Locators are mechanical clamping locators designed for quick change applications. Our unique one-touch design combines positioning and clamping in a single operation, reducing setup time during fixture changes.
The tapered surface contact ensures precise locating repeatability up to 0.003 mm.
The mechanical design with cam and ball-lock mechanism creates a heavy-duty clamping force of up to 4500 N, ensuring reliable fixturing in all applications from assembly and inspection to welding and machining.​

​

Are you facing these problems…?

​

● Want to improve positioning…

● Want to make jig changes faster and easier…

Feature

Point 1: Precise Positioning without Galling or Play

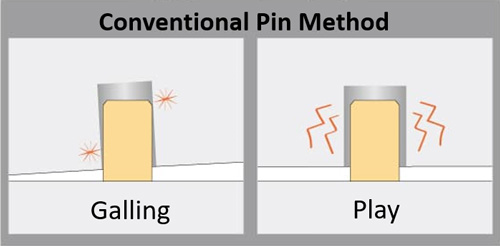

Conventional pins can cause galling if the fit is tight, or play if it’s loose.
The Flex Locator ensures smooth, highly reproducible positioning every time.

Point 2: Wide Range of Variations

From positioning-only types to one-touch models with built-in clamps and air-driven labor-saving types, we offer a variety to suit every workflow.
Choose the type that best fits your application.

​

Easy Work Efficiency Improvement

Positioning-Only Type

​

The tapered cone enables efficient positioning, and the plate is securely fixed with a bolt for strong clamping.

High-Precision, Easy Clamping

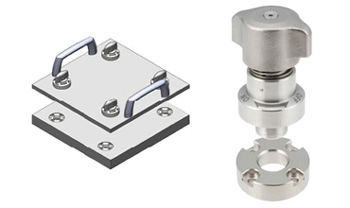

One-Touch Type

​

The tapered cone enables efficient positioning, while bolt fastening secures the plate firmly for reliable clamping.

Labor-Saving Jig Changes

Air-Driven Type

​

The tapered cone enables efficient positioning, while bolt fastening secures the plate firmly for reliable clamping.

Products

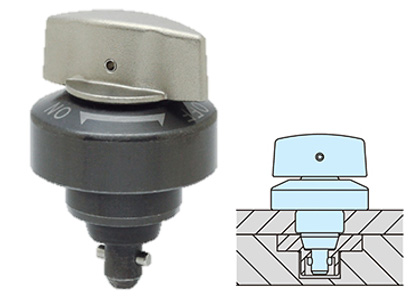

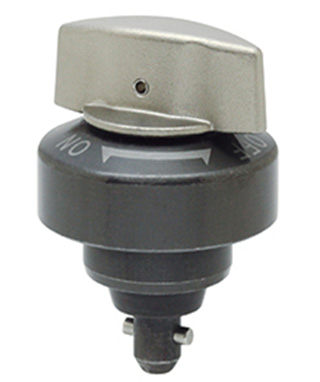

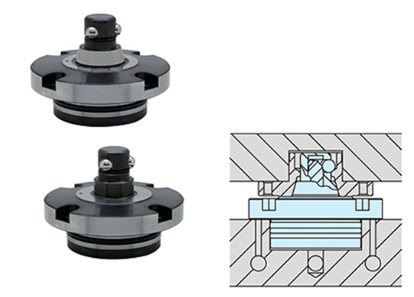

ONE-TOUCH FLEX LOCATOR (Knob)    【Positioning & Clamping】

​

Space saving operation

• Cam-Driven Clamping
• Knob Operation for Easy, Consistent Handling

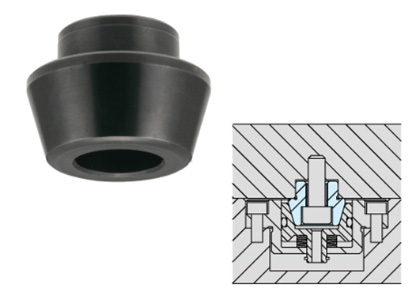

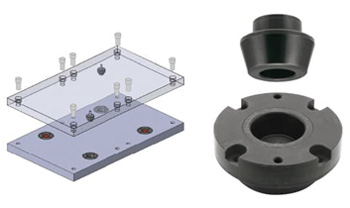

Flex Locator Pins (Tapered Pin)    【Positioning】

​

Easier mounting hole preparation

• Secure Two-Surface Hold with Movable Taper Mechanism
• Easy-to-Mount Bolt-Fixed Type

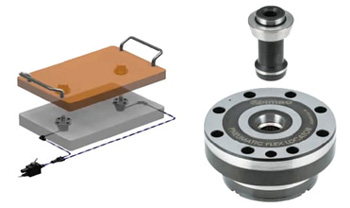

PNEUMATIC CLAMPING LOCATORS    【Positioning & Clamping】

​

Air-Powered for Instant Fixing

• High-Precision Positioning
• Held securely by a spring clamp even when air pressure drops.

For more details,
please see the online catalogue.

Click here ▶
