Optic Measuring Machine for Shaft

Best Choice for Cylindrical measurement
Optic Measuring Machine, TIMI Series

► Faster and more accurate measurement of cylindrical and shaft products

manufactured and distributed by USDV, Taiwan, TIMI Series.

Features

360° rotating unit in the center, Specialized construction for measuring shafts and cylindrical shapes.
support for High-precision dimensional measurement.

Geometric Tolerancing measuring (Cylindricity, Roundness, Runout, etc.)

Non-contact, three-dimensional measurement of even complex shapes such as crankshafts.

► 【Case】Improve Work Efficiency !

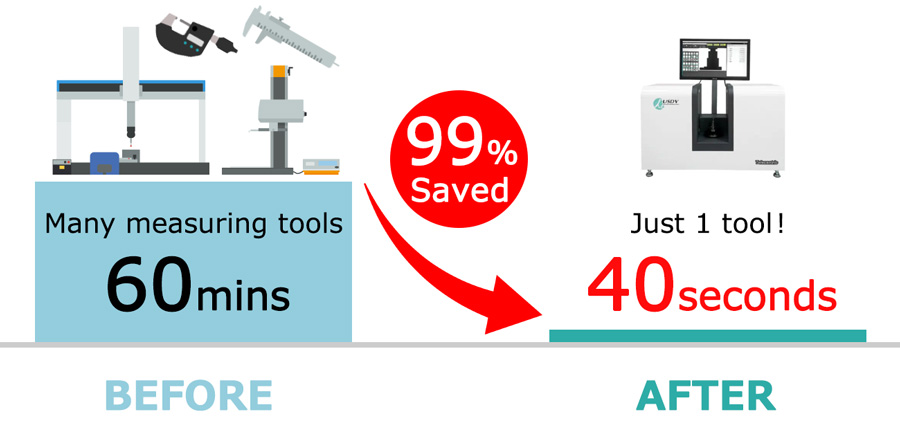

Conventional shaft measurement involves the use of four different measuring instruments and takes up to 60 minutes per shaft.
With TIMI, more than 40 items can be measured in 40 seconds, including all dimensions and geometric tolerances, thus significantly reducing the measuring time.

► Features

360° rotating unit in the center

specialized in Shaft, Cylindricity measurement

Geometric Measurement

‧ Position tolerance Concentricity (Shaft/Thread)
‧ Form tolerance
Straightness, Roundness, Cylindricity
‧ Directional tolerance Parallelism, Verticality, Slope
‧ Deflection tolerance
Run-Out

Industrial PC

Support for Outgoing inspection, In-Line Inspection, In-Process Inspection

High Performance, Low Cost

excellent value for money

Easy operation

Intuitive Operation

Spec (Standard)

φ40mm × Length 200mm (TIMI Series Max : φ65mm × Length 450mm)
