DAIDO DMS (THAILAND) CO.,LTD.
Tool steels / Heat treatment / Surface treatment (Nitriding, TD processing and PVD coating)

Heat treatment

We handle all types of tool steel and heat treatment.

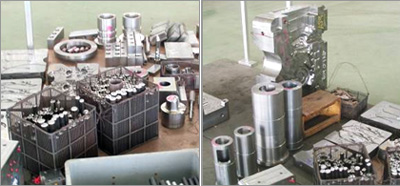

Examples of heat treatment items

[Hot/Warm work die]

Die-casting molds and parts, Forging dies, Press dies, Extrusion mold

[Cold work die]

Press dies, Forging dies, Drawing dies, Powder molding dies, Plastic mold

[Cutting tools]

End mills, Hobs, Milling cutters

[Roll molding]

Rolls, Engraved rolls

[Knives]

Shears/Slitter blades, Bar shears

[Molding tools]

Rolling dies


≪Normal treatment contents≫
● Quenching and tempering heat treatment of various tool steels (including high speed steel)
● Annealing, heat treatment and distortion relief annealing of various tool steels (including high speed steel)
● Aging treatment of age-hardened steel


* Please inquire about other treatments.



≪Features≫

①

Rapid cooling using cooling gas pressure of up to 1,000 kPa enables heat treatment with high toughness.

②

Large items can be processed using a large vacuum heat treatment furnace (maximum processing weight: 1.2 tons). (See the table below for dimensional restrictions.)

③

The cooling gas pressure and volume during hardening can be flexibly controlled, ensuring high internal quality and low distortion. Both processes are possible.

④

Quality, operational management, and after-sales service unique to Japanese companies and materials manufacturers (Daido Steel) We can propose solutions by directly introducing technology.

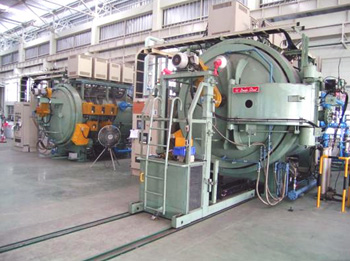

[Photo] Quenching and tempering furnace equipment


List of heat treatment equipment

ClassificationEquipment nameEffective dimensionsNumber of unitsMaximum heating temperatureprocessing power
Quenching Furnace1000KPa Gas-cooled vacuum furnace V1 900W × 900H × 1,200L 1 1,300℃ 1,200kg/Ch
1000KPa Gas-cooled vacuum furnace V2 600W × 600H × 900L 1 1,300℃ 600kg/Ch
1000KPa Gas-cooled vacuum furnace V3 900W × 900H × 1,200L 1 1,300℃ 1,200kg/Ch
600KPa Gas-cooled vacuum furnace V4 600 W X 600 H X 900 L1 1,300℃600kg/Ch

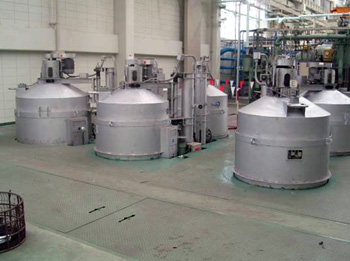

Tempering FurnacePot-type air tempering furnace
A B G I J
Φ800 × 1,500H 5 700℃ 1,500kg/Ch
Pot-type air tempering furnace
C D E F H K L
Φ600 × 700H 7 700℃ 600kg/Ch
Ancillary FacilitiesShot blasting machine No.1 Φ1,000 × 0,600H 1 - -
Shot blasting machine No.2 Φ1,500 × 1,000H1 --
Vacuum furnace circulation cooling water treatment equipment - 1 set - 1㎥/Hr
