Air Purifier ERU
|

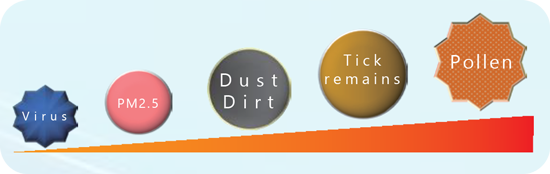

Capturing viruses floating in the air by small particle with a HEPA filter used in the operating room |
|
|
|
New normal with COVID 19Air Purifier ERU■ High air flow 18m3 /min ■ Low noise 49.5dB(A)
|

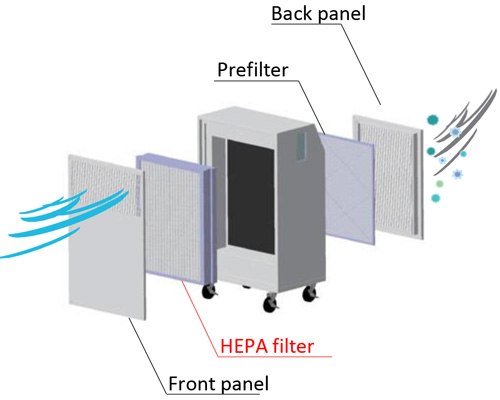

Structure diagram |
※The guideline for replacing the HEPA filter is 1 year, but it may change depending on the installation area conditions.
Simulation of concentration changes in room |
|
【Condition】 |
● Room status ： No ventilation system ● Area ： 121m2 (11m×11m) ● Air flow ： 18m3 /min |
● Air change rate ： 3 times /hour ● Relative concentration ： 0～100% ※Compare the initial state as 100% |
※Relative concentration by color
Performance |
★ Sony Device Technology (Thailand) Co., Ltd.
Product introduction video |
Product specification |
| Item | Specification | |
| Power source | 220Ｖ 50Hz | |
| Electrical Characteristics | Power consumption | 100W |
| Operating current | 1.0A | |
| Fan System | Fan Type × Quantity | Turbo fan ×1 |
| Air volume | 18m3 /min | |
| Ex-unit Static Pressure | 0Pa | |
| Fan Motor Rated Output | 200W | |
| Power supply Connection Part | Power cord 3 m (with ground) | |
| Outer Dimensions | Height | 1172mm |
| Width | 700mm | |
| Depth | 480mm | |
| Sound Level | 49.5dB(A) | |
| HEPA filter | Rated Dust Collection Efficiency | 99.97% at 0.3μm |
| Unit Weight | 61kg | |
Note
・ Use range: 0℃ to 40℃, RH 80% or less
・ Storage temperature: -20℃ to 80℃
・ The sound level is an anechoic room data 1m from the floor and 1m from each side. The operating condition is DB 20℃
・ The specification is the value at the fan rotation speed initial value of 750 rpm.
